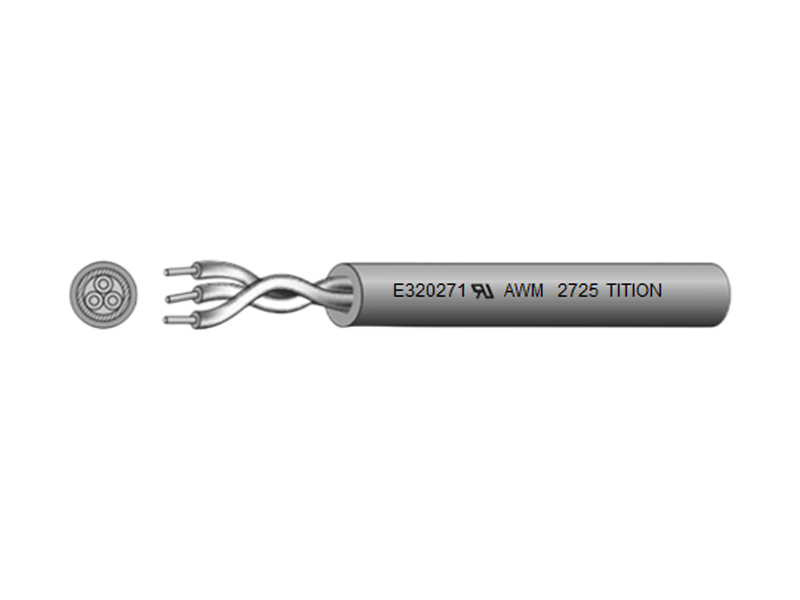

说明
额定温度：80℃
额定电压：30V
标准：UL758 ，UL1581及CSA22.2 No.210.2
导体:绞合铜线镀锡铜丝
绝缘:聚氯乙烯
通过VW-1及CUL FT1笔直耐燃连线
环保要求：RoHS & REACH;
应用
产品广泛用于电器设备内部连接线
参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 护套 | |||||
| AWG | Core.Number | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | ||
| 线规 | 电缆芯数 | 平均厚度 | 参考外径 | |||
| mm | mm | |||||
| 20 | 2× | 0.76 | 3.70 | 36.7 | ||
| 3× | 3.90 | |||||
| 4× | 4.30 | |||||
| 22 | 2× | 0.76 | 3.30 | 59.4 | ||
| 3× | 3.50 | |||||
| 4× | 3.80 | |||||
| 24 | 2× | 0.76 | 3.00 | 94.2 | ||
| 3× | 3.20 | |||||
| 4× | 3.50 | |||||
| 26 | 2× | 0.76 | 2.80 | 150 | ||
| 3× | 2.90 | |||||
| 4× | 3.20 | |||||
