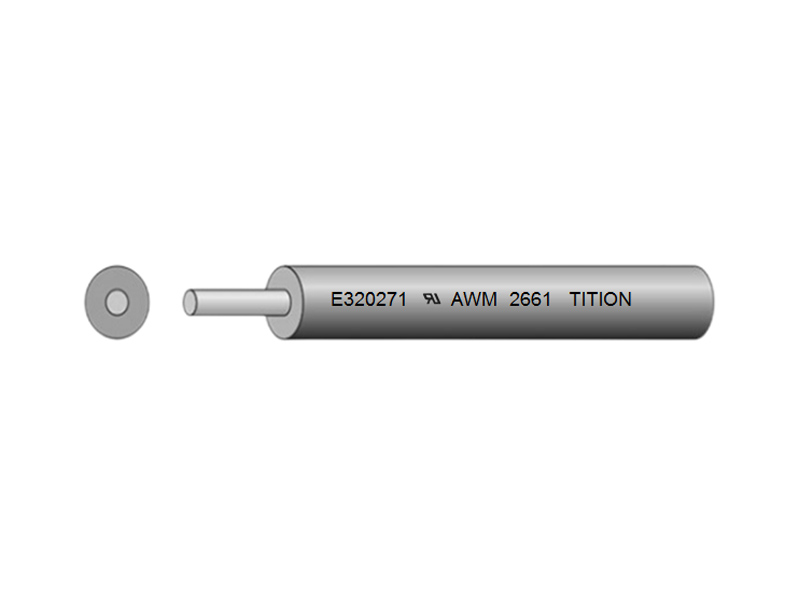

说明
额定温度：105℃
额定电压：300V
标准：UL758 ，UL1581及CSA22.2 No.210.2
导体：绞合铜线镀锡铜丝
绝缘：聚氯乙烯
通过VW-1及CUL FT1笔直耐燃连线
环保要求：RoHS & REACH
应用
电子设备的外部互连
参数
| Conductor 导体 | Insulation 护套 | Maximun Resistance at 20℃ 20℃最大导体电阻Ω/km | ||||
| AWG 线规 | Core.Number 电缆芯数 | Nom.Thick. 平均厚度 mm | Average 参考外径 mm | |||
| 16 | 2× | 0.76 | 5.80 | 14.6 | ||
| 3× | 6.10 | |||||
| 4× | 6.60 | |||||
| 18 | 2× | 0.76 | 6.00 | 23.2 | ||
| 3× | 6.30 | |||||
| 4× | 6.80 | |||||
| 20 | 2× | 0.76 | 5.50 | 36.7 | ||
| 3× | 5.80 | |||||
| 4× | 6.20 | |||||
| 22 | 2× | 0.76 | 5.20 | 59.4 | ||
| 3× | 5.40 | |||||
| 4× | 5.80 | |||||
